LoRA Training and Serving

Train LoRA adapters with miles, synchronize them to SGLang, and run dense, MoE, quantized-rollout, multi-LoRA, and agentic recipes.

miles trains the adapter matrices in Megatron and serves the same live adapter from SGLang. The base model stays frozen; at each configured weight-update boundary, miles exports and synchronizes the updated LoRA weights. The default boundary is once per rollout/train iteration. No merge-to-base or checkpoint conversion is required inside the training-rollout loop.

Training and rollout lifecycle

For a single adapter, miles exports the updated LoRA tensors at each configured publish boundary. Colocated jobs load them through the local tensor/IPC path; disaggregated Bridge jobs broadcast them to remote SGLang engines over NCCL. Rollout requests then select the live named adapter with lora_path.

Multi-LoRA currently supports disaggregated rollout only and rejects --colocate at launch. Each SGLang engine keeps the base checkpoint resident; miles selectively exports and NCCL-broadcasts newly loaded or optimizer-stepped adapters into their corresponding SGLang slots. New or restarted engines receive every loaded adapter, while unchanged adapters are not resent.

Model support is therefore a three-way contract rather than a hard-coded allowlist:

1. Megatron-Bridge (or a model-specific provider) must build and wrap the training model.
2. miles must map and export the selected module names correctly.
3. SGLang must be able to allocate and apply the same adapter modules.

A model can support attention-only LoRA while still having caveats for expert, linear-attention, or model-specific projections. Start from a validated recipe instead of assuming that any checkpoint with familiar module names will work.

LoRA training implementations

Both implementations use --train-backend megatron. The difference is how LoRA is attached to the Megatron model and converted for serving; this is separate from SGLang’s serving-side --sglang-lora-backend choice.

Implementation	How the adapter is built	Model coverage on current main	Status
Megatron-Bridge PEFT	AutoBridge builds the provider, applies Bridge LoRA before DDP, and exports HF-named adapter tensors. Select it with --megatron-to-hf-mode bridge.	Qwen2.5, Qwen3, GPT-OSS, Kimi K2.5, GLM-5/5.1/5.2, and Qwen3.5/3.6, subject to the evidence and module caveats below.	General production path. Current multi-LoRA also requires this path.
Native / raw-mode LoRA	Under --megatron-to-hf-mode raw, miles builds the model with its own Megatron provider and attaches model-aware adapter modules directly before DDP.	Inkling and Inkling-Small. The current implementation is an Inkling-specific integration, including custom attention, MLP, routed/shared experts, LM head, adapter import, and export.	Specialized path on current main; use the Inkling launcher rather than assuming raw works for another model.

The planned maintenance direction is native-first: after the generalized native plugin lands, new model enablement and ongoing LoRA maintenance will primarily target the native path. Bridge remains the compatibility path for existing validated recipes during the transition; this is not an immediate Bridge deprecation.

Native LoRA

Native LoRA attaches adapter modules directly to raw-mode Megatron models instead of relying on Bridge PEFT conversion. The implementation on main is model-specific to Inkling and Inkling-Small. Generalized model-provider support is under development in open PR #1792 and is not released on main.

Validated models and recipes

The table distinguishes CI-tested configurations from maintained recipes or full-scale experiment evidence. It is not an exhaustive model whitelist.

Implementation	Model family	Architecture exercised	Evidence	Notes
Bridge	Qwen2.5 0.5B / 3B	Dense	0.5B CUDA and ROCm E2E, 3B disaggregated recipe	The simplest starting point; all-linear works.
Bridge	Qwen3 4B	Dense	Single-LoRA recipe, multi-LoRA recipe	Used by the current multi-adapter example.
Bridge	GPT-OSS 20B	MoE	Recipe, MoE LoRA E2E	Uses the SGLang triton LoRA backend.
Bridge	Kimi K2.5	Multimodal MoE + MLA	16-node recipe	Demonstrates shared-outer expert LoRA and an INT4 rollout / fake-QAT setup.
Bridge	GLM-5 / 5.1 / 5.2 744B-A40B	MoE + MLA + DSA	GLM-5.1 launcher, GLM-5.2 launcher	CI covers reduced 6-layer / 5-layer checkpoints; historical full-744B results are described below.
Bridge	Qwen3.5 / Qwen3.6 35B-A3B	Hybrid GDN + MoE	Launcher, Qwen3.5 E2E	Uses explicit wildcard targets to exclude MTP and vision modules.
Native / raw	Inkling / Inkling-Small	Native multimodal MoE	Launcher, Inkling-Small 4-layer E2E	Current main model-specific native path; larger profiles are launcher/experiment evidence rather than LoRA CI.

Quick start

Append the following to a Megatron dense-model recipe:

LORA_ARGS=(
  --lora-rank 32
  --lora-alpha 32
  --lora-dropout 0.0
  --target-modules all-linear
  --megatron-to-hf-mode bridge
)

--lora-rank 0 is the default and disables LoRA when no adapter path is provided. For RL, dropout is normally set to zero. Alpha is recipe-dependent: maintained recipes use both alpha = rank and alpha = 2 * rank.

This quick start is the current Bridge path. On main, non-Inkling models must use --train-backend megatron --megatron-to-hf-mode bridge; the Inkling launcher uses its model-specific native/raw path. The generalized native flags described in PR #1792 are not released on main yet. FSDP does not currently implement LoRA training.

all-linear expands to Q/K/V/O and gate/up/down projections, and conditionally adds MLA Q/KV projections based on the HF config. It does not literally wrap every linear layer. GDN and other model-specific projections require an explicit target list. Current GLM recipes validate models that contain DSA while leaving the DSA indexer unadapted; current hybrid-model recipes also leave MTP blocks and vision towers unadapted. Use the model launcher as the source of truth.

Core arguments

Flag	Default	Purpose
--lora-rank	0	Adapter rank; a positive value enables LoRA. Supplying an adapter path also marks LoRA enabled, but still requires matching positive-rank configuration.
--lora-alpha	16	Adapter scaling factor.
--lora-dropout	0.0	Dropout on the adapter path.
--lora-type	lora	lora uses fused Megatron projections; canonical_lora uses split Q/K/V and gate/up projections. The canonical path is implemented and covered by fast name-mapping tests, but has no maintained recipe or E2E validation.
--target-modules	none	Required with a positive rank. Accepts all-linear, HF leaf names, Megatron names, or model-specific wildcard paths.
--exclude-modules	none	Comma-separated exact entries removed from the resolved targets.
--lora-adapter-path	none	Warm-start/resume path. Also provide the matching positive rank, alpha, and target modules. Bridge training resume currently requires miles’ per-rank adapter shards and the same parallel topology; an HF PEFT-only adapter cannot yet be loaded directly into the Bridge model. Inkling native has its own HF adapter loader.
--lora-base-cpu-backup	off	Colocated mode only: keep a CPU mirror of the frozen SGLang base and avoid re-sending base weights. This trades host RAM for faster and more reliable pause/resume.
--lora-train-only	off	Train the adapter while keeping ordinary rollout engines on the frozen base policy.
--experts-shared-outer-loras	off	Use shared outer factors for grouped MoE experts. This layout is not checkpoint-compatible with per-expert LoRA.
--check-lora-weight-equal	off	On the colocated path, verify each synchronized adapter tensor with SHA-256.
--update-weights-interval	1	Publish new weights every N rollout/train iterations. This is not LoRA-specific, but it controls when the live adapter is synchronized.

This argument table describes the general Bridge surface. Current native Inkling uses a fixed model-specific adapter schema: --target-modules does not select individual training modules, --exclude-modules is not applied, and canonical_lora is not implemented. Use the Inkling launcher defaults.

Rollout topology

Topology	Adapter transport	Requirements
Colocated	Local tensor serialization / CUDA IPC	Add --colocate; large-model recipes generally also use --lora-base-cpu-backup. Pipeline parallel adapter shards are assembled before the load.
Disaggregated, including multi-node	NCCL broadcast to remote SGLang engines	Use --update-weight-transfer-mode broadcast, Bridge mode, and --pipeline-model-parallel-size 1.

The current native Inkling path is colocated only. Remote/disaggregated LoRA sync on main requires Bridge.

LoRA is not supported by the P2P/RDMA or disk-delta weight-transfer modes. A hybrid job with both colocated and additional remote rollout engines also cannot send LoRA weights to the remote engines today.

The legacy --lora-sync-from-tensor flag is still accepted by the parser but is not consumed by the implementation. The topology selects the synchronization path automatically; do not rely on this flag.

MoE adapters

This section describes the Bridge path; native Inkling uses its fixed custom expert layout. For grouped MoE experts, the training and serving layouts must agree. A typical Bridge configuration is:

LORA_ARGS=(
  --lora-rank 32
  --lora-alpha 32
  --lora-dropout 0.0
  --target-modules "gate_proj,up_proj,down_proj"
  --sglang-lora-backend triton
  --megatron-to-hf-mode bridge
)

The SGLang triton backend is required by the maintained MoE recipes; the default backend can skip MoE layers. Per-expert adapters are the default. --experts-shared-outer-loras selects the shared-outer layout, and miles enables SGLang virtual-expert serving for expert adapters by default. Use --no-sglang-lora-use-virtual-experts only when intentionally selecting the alternative aligned-expert path.

Supported features

• Losses and algorithms. LoRA wraps the actor model independently of the policy loss. The maintained RL recipes use critic-free estimators such as GRPO. The SFT loss path can use the same adapter hooks, although the repository does not yet have a dedicated LoRA-SFT E2E test. Shared actor/critic PPO with Bridge LoRA is untested: the critic is always built as a full model without adapters.
• Checkpoints. miles saves native per-rank adapter shards and optimizer/scheduler state. Exact resume expects the same TP/PP topology. It also attempts a best-effort HF PEFT adapter_model.bin plus adapter_config.json export for external serving and warns if that export fails. Direct HF PEFT-to-Bridge resume is not implemented yet; native Inkling supplies a model-specific HF adapter importer.
• Weight synchronization. Colocated IPC and remote NCCL broadcast both ship adapter tensors at each configured update boundary without merging them into the base. A checksum checker is available for the colocated path.
• Model structures. Dense attention/MLP, MLA, GDN, multimodal models, models containing DSA, and both per-expert and shared-outer MoE adapters have validated recipes or tests. DSA-indexer adapters themselves are not validated; see the model-specific caveats in the table above.
• Agentic sessions. Session-server requests carry the active single-LoRA name, so multi-turn trajectories are generated by the updated policy rather than the frozen base. See the experimental example below.

Quantized rollout

Precision support is asymmetric: the validated FP8 configuration trains the LoRA actor in BF16 while SGLang serves a separately quantized FP8 base checkpoint. Adapter tensors remain unquantized and are synchronized at each configured weight-update boundary. The GLM-5.2 launcher exposes this as its --fp8-rollout option and writes an SGLang config with update_weights: true. See Low Precision RL and INT4 QAT for the underlying precision features.

Historical GLM-5.2 validation measured:

Configuration	Train/rollout abs diff	KL
5-layer GLM-5.2, BF16 rollout	0.0104	1.2e-4
5-layer GLM-5.2, FP8 rollout	0.0347	9.8e-4
Full GLM-5.2 744B, FP8 rollout, two 16-GPU engines	0.0196	2.7e-3

These values are configuration-specific rather than universal FP8 thresholds. The full-744B row is historical multi-node evidence and cannot be reproduced directly by the current single-node main launcher; multi-node launcher work is tracked in PR #2033.

The same work also produced the following curves from a different, longer validation run. The exact configuration for these curves was not published, so their plotted levels should not be mapped to any one of the final point measurements in the table:

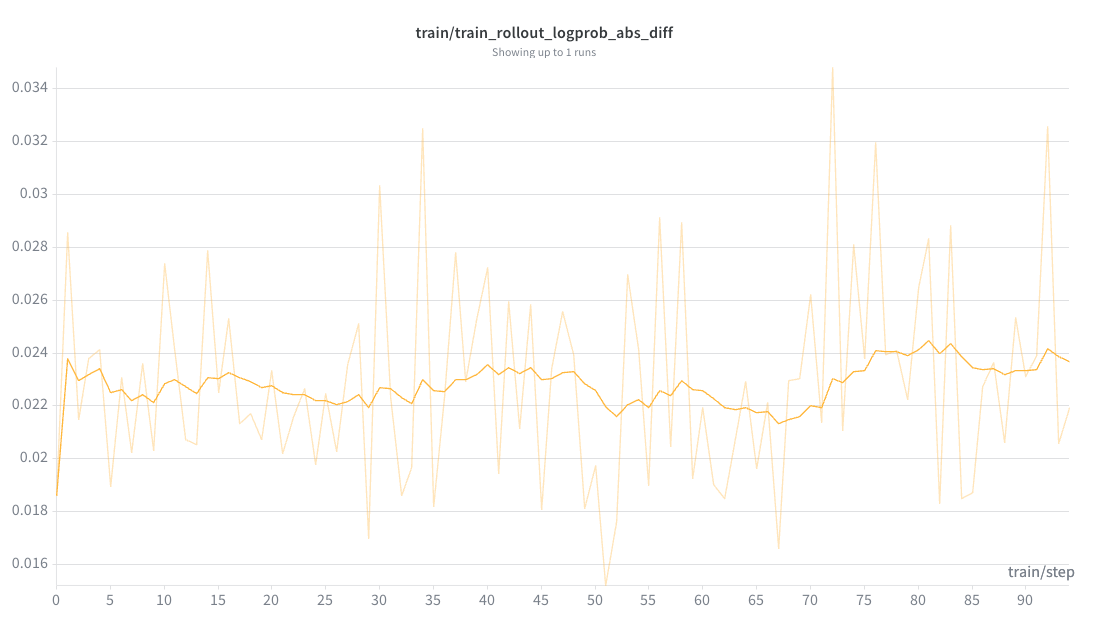

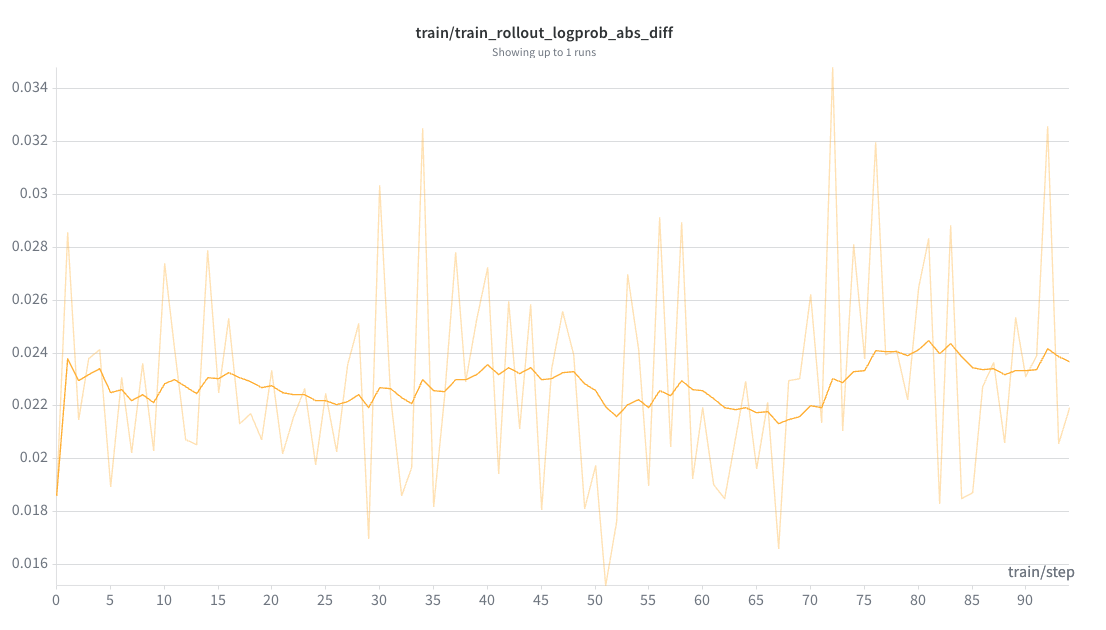

Train/rollout log-prob difference in the longer FP8 rollout validation.

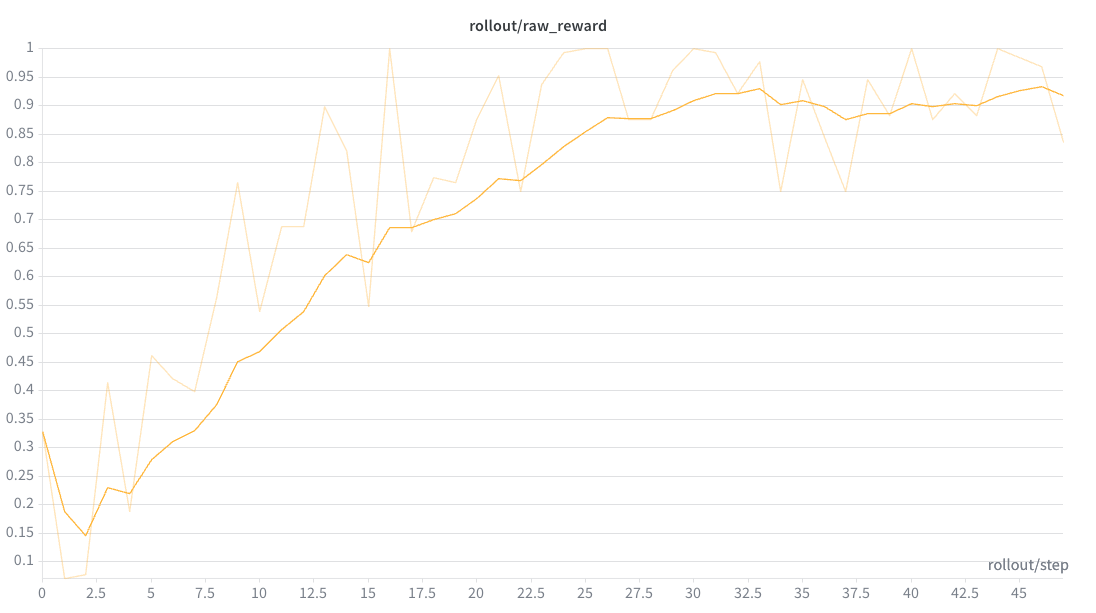

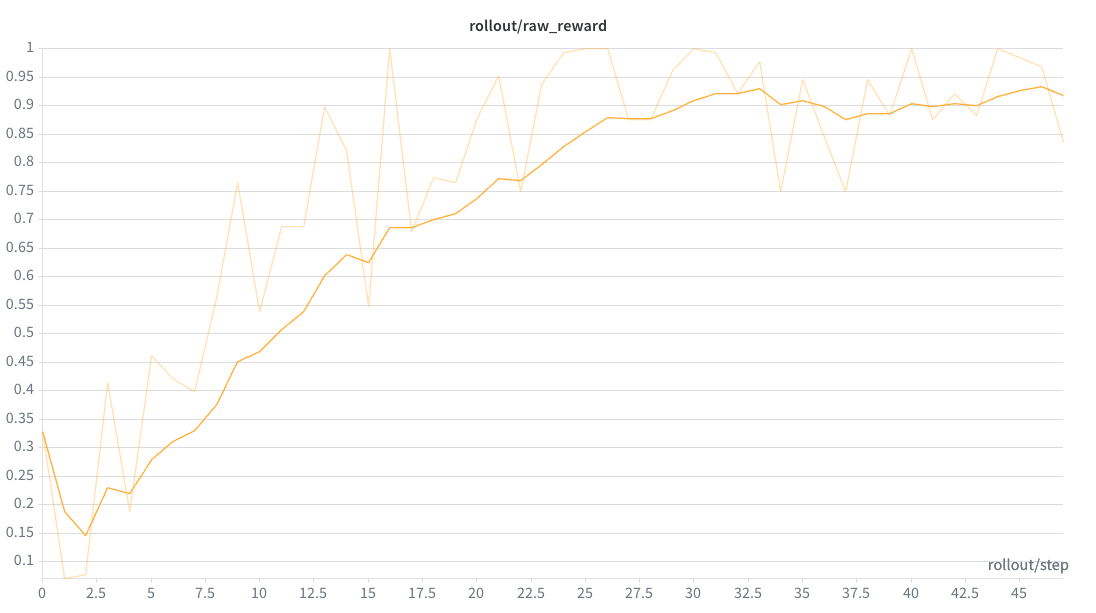

Raw reward in the longer FP8 rollout validation.

Kimi K2.5 provides a separate model-specific INT4 example: SGLang serves the INT4 checkpoint while the trainer uses BF16 fake-QAT and TIS correction. Do not generalize these two recipes into blanket support for FP8, MXFP8, or INT4 LoRA training on every model. In particular, multi-LoRA on MoE expert leaves rejects FP8/FP4 experts.

GLM-5.2 744B BF16 validation

Historical full-scale runs validated the GLM-5/5.1/5.2 Bridge LoRA path across MoE and MLA on models containing DSA; the DSA indexer itself was excluded from the adapter targets. The full GLM-5.2 744B run used 64 GPUs and completed more than 50 rollout -> train -> save steps. The validation also compared expert target selections, including a run that excluded down_proj.

Treat this as historical implementation and scale evidence. The reported train/rollout log-prob gaps are configuration-specific and are not established as a portable acceptance threshold, so the corresponding curves are not reproduced here.

This historical validation is not a claim that the current main launcher reproduces the 744B run on one node. The checked-in launcher is single-node; the repository’s copy-paste validation path uses a reduced checkpoint. Multi-node full-744B launcher work is tracked in PR #2033.

Agentic RL with LoRA (experimental)

Agentic rollout has one extra correctness requirement: every turn sent through the session server must select the newly synchronized adapter. The session server therefore attaches lora_path=miles_lora to its requests; otherwise the trainer could update LoRA while the agent continues collecting trajectories from the frozen base policy. The current session integration selects the fixed single-adapter name; it is not multi-LoRA slot routing, and it should not be combined with --lora-train-only.

Draft PR #2280 adds the first LoRA-specific agentic recipe: GLM-5.2 744B-A40B with synchronous GRPO on Terminal-Bench-2-style tasks, a Harbor agent server, and Daytona sandboxes. Its reference configuration uses:

• 4 nodes x 8 H200, TP8 / EP32 / PP1 / CP1;
• BF16 training with an FP8 rollout checkpoint;
• rank 16, alpha 32, attention/MLA-only targets;
• 64K sessions, TileLang DSA, full recompute, and disk actor offload; and
• two 16-GPU rollout engines with --lora-base-cpu-backup.

The author reports 30+ 64K-context GRPO rollouts with stable rewards and no NaN/OOM, but the PR does not publish a reward value, solve rate, or learning curve. It remains a draft and depends on an open memory-headroom companion change (PR #2199), so treat it as stability evidence rather than a released benchmark.

Multi-LoRA training

Current dataset-driven backend

The implementation on main trains multiple adapters against one shared base model through the fully async example. Each registered adapter supplies its own dataset, reward, rollout batch shape, rank/alpha, and checkpoint directory, with most fields inheriting process-wide defaults. LR/WD hyperparameters come from the global CLI; each fixed slot has its own Adam state and independently clocked scheduler. The trainer coalesces ready prompt-group slices or partial adapter batches and selectively upserts only changed adapters into SGLang.

Set the slot capacity with --multi-lora-n-adapters N. A bounded run registers repeatable --multi-lora-adapter NAME PATH entries at startup; service mode can start with empty slots and register adapters through the controller HTTP API. This path currently forces Megatron-Bridge LoRA and requires disaggregated NCCL broadcast, PP1, THD, Adam, and no train offload. Shared-outer expert adapters are unsupported, and MoE expert adapters cannot use FP8/FP4 experts.

Native multi-LoRA is not implied by the native single-adapter work: both current main and the Tinker-oriented branch below still build multi-LoRA through Megatron-Bridge. Native multi-LoRA is tracked separately in issue #2141.

Future Tinker-compatible operation backend

PR #2273 is the active Tinker-oriented backend proposal. It changes ownership of the training loop: instead of the server owning a dataset, reward function, and one-step schedule, clients submit explicit operations against a registered adapter. Its primary intended consumer is a Tinker-compatible training service rather than a generic server-owned dataset scheduler.

Tinker-style client
  | register + ordered operations
  v
controller / operation ledger
  | bind one fixed LoRA slot
  v
Megatron-Bridge multi-LoRA trainer
  | forward, backward, optimizer, checkpoint
  | save_weights_for_sampler publish barrier
  v
SGLang router + registration-scoped adapter identity

The operation surface separates compute, optimization, and publication:

Operation	Contract
forward / forward_backward	Return per-datum log probabilities; backward calls accumulate client-scaled gradient sums.
optim_step	Apply client-supplied Adam parameters and clipping to one slot, with an all-rank non-finite veto.
save_weights_for_sampler	Publish the latest adapter and complete only after the new serving version is live.
save_state / load_state	Save or restore immutable per-adapter weights and optimizer state behind shape, world-size, and ownership fences.

The design uses fixed residency rather than transparent LRU eviction. Operations are strictly serialized per registration, while idempotent retries, gap-buffered arrival, acknowledgements, and backpressure make execution retry-safe and order-safe. A registration-scoped serving identity prevents an old request from using a slot after that slot has been reassigned. Authenticated remote access is the responsibility of the future frontend, not the Ray operation API in #2273.

The v1 scope in the PR is deliberately narrow: text-only synchronous training, one shared base model, shifted 1-D targets, cross_entropy, importance-sampling, and PPO losses, per-call Adam, and latest-only sampler weights. Multimodal, top-K/SDFT targets, CISPO/DRO, asynchronous or pinned-snapshot off-policy training, and cross-world-size restore are outside v1.

This backend is implemented in an open PR, not released on main; the PR reports H200 validation. PR #2273 provides the operation backend, but its v1 training operations are still exposed through the controller’s Ray API. The stacked PR #2346 adds a REST frontend compatible with the official tinker==0.24.1 client; its GPU frontend E2E is still pending. If #2273 lands as proposed, it replaces the current dataset-driven driver.

Compatibility and limitations

• Training backend: Megatron only; FSDP has no LoRA training path.
• Implementation path on main: Bridge is the general path; native/raw LoRA is model-specific to Inkling. General native coverage is pending PR #1792.
• Remote transport: NCCL broadcast only, with PP1. P2P/RDMA and disk-delta reject LoRA.
• PPO: shared actor/critic PPO with Bridge LoRA is untested; the critic never gets adapters.
• Resume: miles adapter shards are resumable with the matching parallel topology. Direct HF PEFT import into the Bridge model is not yet implemented; native Inkling has a custom importer.
• Memory optimizations: --rematerialize-param-from-master-weight and streamed optimizer state on NVMe reject LoRA. Ordinary actor disk offload is a different feature and is used by the draft agentic recipe.
• Multi-LoRA: the current and proposed Tinker operation paths both require Bridge; native multi-LoRA remains roadmap work. Evaluation, colocate, PP, train offload, shared-outer experts, and FP8/FP4 MoE expert adapters are not supported by the current multi-adapter path.
• Agentic sessions: the current session integration selects the fixed miles_lora adapter, not a multi-LoRA slot; --lora-train-only is also not a supported combination for this path.

Internals

• miles/backends/megatron_utils/bridge_lora_helpers.py builds and wraps the general Bridge LoRA model.
• miles/backends/megatron_utils/lora_utils.py resolves module names, creates standard/canonical adapters, and implements adapter checkpoint helpers.
• miles_plugins/models/inkling/lora.py implements the native/raw LoRA path available on current main.
• miles/backends/megatron_utils/update_weight/update_weight_from_tensor.py handles colocated adapter export and IPC loading.
• miles/backends/megatron_utils/update_weight/update_weight_from_distributed/ gathers and broadcasts adapters to remote SGLang engines.
• miles/rollout/session/core.py attaches the single adapter to agentic session requests.
• miles/ray/multi_lora/, miles/rollout/multi_lora/, and miles/backends/megatron_utils/multi_lora_*.py implement the multi-adapter controller, routing, scheduling, optimization, and checkpoint path.
